제품소개 > Dish Head & Shell
Dish Head

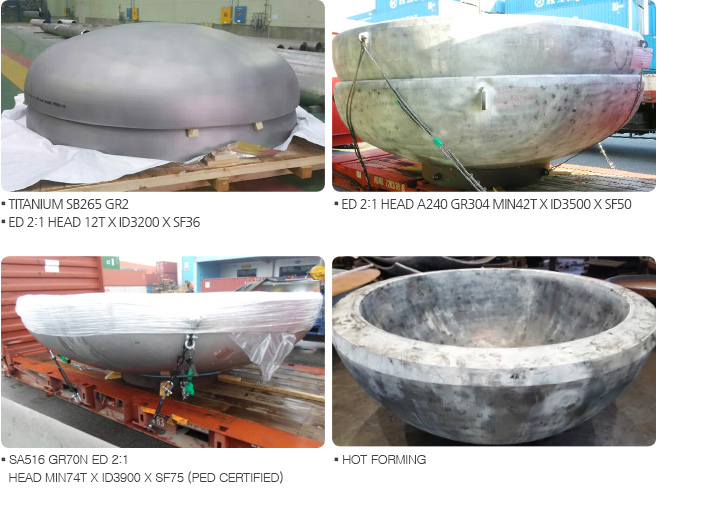

We supply the formed head products from KOREA largest formed head maker.

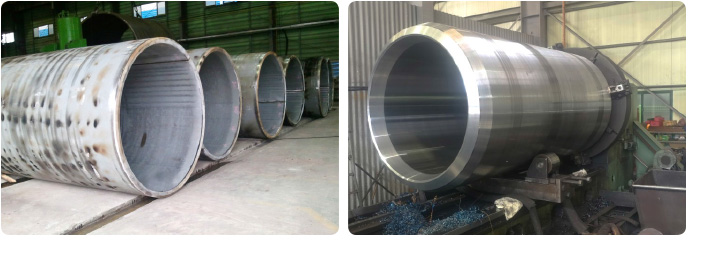

Shell
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|
| t | Thickness | SF | Straight flange Height |
| ID | Inside Diameter | h | Height (Dished) |
| R | Crown Radius | H | Inside Height |
| r | Knuckle Radius |
| SHAPE & DESCRIPTION | DIMENSIONS | SHAPE & DESCRIPTION | DIMENSIONS |
|---|---|---|---|
 |
LD r≥3t |
 |
ED R=2:1 Ellipsoidal H.P r h=1/4D |
 |
FH R/D≥0.8 |
 |
AD R=0.9045D r=0.1727D h=1/4D |
 |
SD R=D r=0.1D h=0.194D |
 |
BM |
 |
SD R=0.8D r=0.155D h=0.255D |
 |
SD |
 |
SD R≥D r≤0.1D |
 |
SD |
 |
JT |  |
OD |
 |
IC |  |
HH R=0.5D |
